brass tube bundle heat exchanger
When it comes to transferring heat efficiently, reliably, and cost-effectively, nothing quite matches the precision and performance of a brass tube bundle heat exchanger. These heat exchangers are designed to maintain optimum temperature control, support high thermal conductivity, and ensure exceptional durability—even under demanding operational conditions.
Whether you’re running a manufacturing plant, a marine system, a refinery, or a large-scale HVAC application, brass tube bundle heat exchangers are trusted worldwide for their versatility, longevity, and corrosion resistance. More importantly, they provide consistent performance, reducing maintenance downtime and boosting energy efficiency—two things that every operation can benefit from.
What Is a Brass Tube Bundle Heat Exchanger?

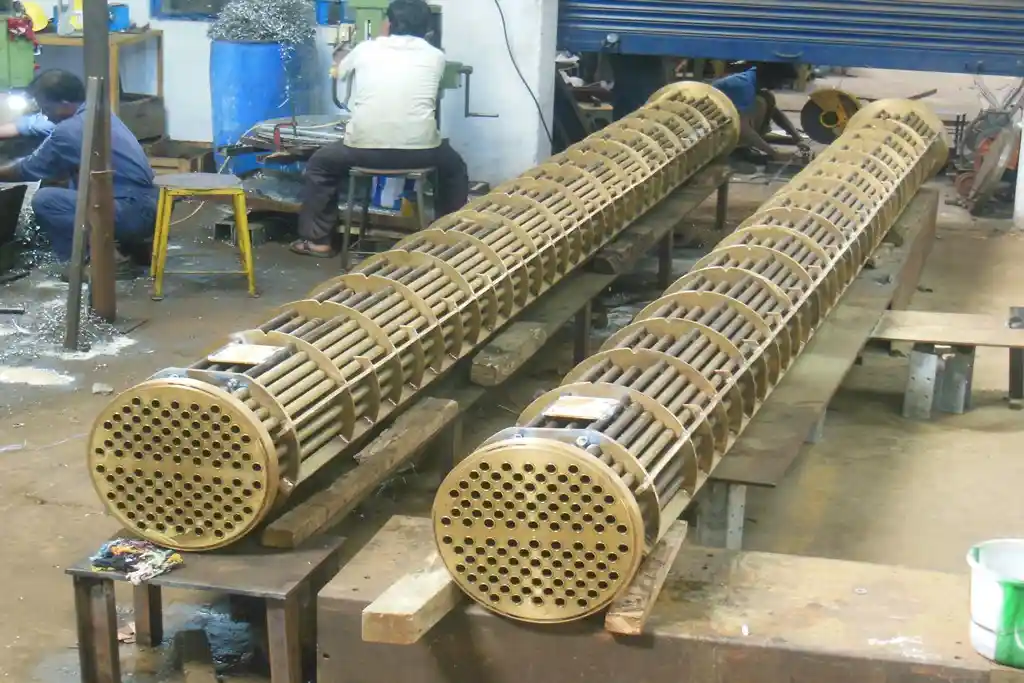

A brass tube bundle heat exchanger is a type of heat transfer equipment that consists of a series of metal tubes—in this case, made from brass—housed within a cylindrical shell. Fluids at different temperatures flow either through the tubes or around them, allowing heat to transfer from one medium to another without mixing the fluids.Brass, a copper-zinc alloy, is chosen for its excellent thermal conductivity, anti-corrosive properties, and malleability, making it a preferred material in industrial heat exchanger applications.
Typical components include:
- Shell – the outer casing.
- Tube bundle—the core structure containing brass tubes.
- Baffles – direct the fluid flow to improve heat transfer.
- Tube sheets—hold the tubes in place.
- Heads and nozzles – control fluid entry and exit.
This design ensures maximum surface contact between the hot and cold fluids, enabling fast and effective heat exchange.
Why Choose Brass for Tube Bundle Heat Exchangers?
1. Superior Thermal Conductivity
Brass is renowned for its excellent heat transfer properties, second only to pure copper. This makes it an ideal choice for systems requiring rapid temperature change and precise control.2. Corrosion Resistance
In marine and chemical processing environments, corrosion is a major issue. Brass offers natural resistance to corrosion from water, steam, salt, and various chemicals, extending the exchanger’s service life.3. Mechanical Strength and Durability
Brass tube bundles maintain their structural integrity under high pressure and extreme temperatures, ensuring reliable long-term operation.4. Cost-Effectiveness
Compared to other high-end alloys, brass provides exceptional performance at a more affordable cost, making it a smart investment for both industrial and commercial users.5. Easy Maintenance and Replaceability
Brass tubes are easy to clean, remove, and replace during scheduled maintenance. This minimizes downtime and reduces operating costs.How a Brass Tube Bundle Heat Exchanger Works
At its core, the functionality is elegantly simple:- Fluid Entry: A hot or cold fluid enters the exchanger through an inlet nozzle.
- Tube Flow: One fluid flows through the brass tubes while another fluid flows around the outside (inside the shell).
- Heat Transfer:Heat moves from the hotter fluid to the cooler one through the brass tube walls without mixing the fluids.
- Fluid Exit: Both fluids leave the exchanger at different temperatures.
- Continuous Cycle: This process can run continuously, maintaining desired temperature levels efficiently.
- Parallel Flow – both fluids move in the same direction.
- Counter Flow – fluids flow in opposite directions for maximum efficiency.
- Cross Flow – fluids move perpendicular to each other.
Types of Brass Tube Bundle Heat Exchangers
1. Fixed Tube Sheet Heat Exchanger
- Tubes are fixed to the shell at both ends.
- economical and simple to keep the tube side clean.
- Best for non-fouling fluids.
2. U-Tube Bundle Heat Exchanger
- Brass tubes are bent into a U-shape.
- Allows for thermal expansion and easy tube replacement.
- Ideal for high-temperature differential applications.
3. Floating Head Exchanger
- One tube sheet is fixed; the other floats.
- Best suited for systems with frequent thermal expansion.
- Easy to clean both shell and tube sides.
Applications of Brass Tube Bundle Heat Exchangers
Brass tube bundle heat exchangers are used across diverse industries thanks to their reliability and performance:- Industrial Processes – oil refining, chemical processing, and pulp and paper industries.
- Marine & Shipbuilding – for seawater cooling systems and onboard engine cooling.
- HVAC Systems – air conditioning and refrigeration systems.
- Power Generation – for steam condensers and waste heat recovery.
- Commercial Buildings – energy-efficient cooling and heating systems.
- Desalination Plants – corrosion resistance to saline water.
Their wide adaptability makes them a preferred choice for both heavy-duty industrial and everyday commercial applications.
Key Technical Specifications (Typical)
While the exact specifications depend on your system, below are common technical parameters:| Parameter | Typical Range |
|---|---|
| Tube Material | Brass (Copper-Zinc Alloy) |
| Tube Diameter | 9.5 mm – 25 mm |
| Tube Thickness | 0.5 mm – 2.5 mm |
| Tube Length | Up to 6 meters (customizable) |
| Working Pressure | Up to 30 bar |
| Working Temperature | -20°C to +250°C |
| Heat Transfer Coefficient | 3000–6000 W/m²·K |
| Fluid Types | Water, Oil, Steam, Chemicals, Seawater |
Custom configurations are often available depending on application needs.
Advantages Over Other Materials
| Feature | Brass Tube Bundle | Stainless Steel | Carbon Steel |
|---|---|---|---|
| Thermal Conductivity | Excellent | Good | Fair |
| Corrosion Resistance | High | High | Moderate |
| Cost | Moderate | High | Low |
| Maintenance | Easy | Moderate | Frequent |
| Marine Application | Excellent | Good | Poor |
| Service Life | Long | Very Long | Short |
This comparison highlights brass as a smart, balanced choice between performance, cost, and maintenance ease.
Customization Options for Consumers
Every operation has unique requirements. That’s why most high-quality brass tube bundle heat exchangers can be customized based on:- Tube length and diameter
- Number of tube passes
- Pressure rating
- Flow configuration (parallel, counter, cross)
- Shell material and coating
- Mounting design
- Additional safety or performance features
This flexibility ensures your system’s heat exchange process runs at peak efficiency without overspending on unnecessary specs.
Maintenance and Care: Simple Yet Effective
One of the best things about brass tube bundle heat exchangers is how low-maintenance they are. Regular maintenance ensures top performance for years.Maintenance Tips:
- Periodically clean tube interiors to remove scale or debris buildup.
- Inspect tube bundles for signs of wear or corrosion.
- Flush the system using approved cleaning agents.
- Replace damaged tubes promptly to avoid compromising efficiency.
- Use proper water treatment to prevent mineral scaling.
With proper care, these exchangers can last 15 years or more—a great return on investment.
Energy Efficiency and Environmental Benefits
Brass tube bundle heat exchangers not only save operational costs—they also help reduce environmental impact.- Lower Energy Consumption – High heat transfer rates mean less energy is needed to reach target temperatures.
- Longer Life Span – Durable materials reduce waste from frequent replacements.
- Sustainable Materials – Brass is recyclable, making it an eco-friendly choice.
- Better Process Optimization – Precise temperature control enhances overall system performance.
This makes them a sustainable solution for modern industries aiming to meet energy-efficiency goals.
Installation and Integration
Whether you’re retrofitting an existing system or installing a new setup, brass tube bundle heat exchangers are designed for easy integration:- Compact and space-saving designs.
- Multiple mounting options.
- Compatible with standard piping systems.
- Simple connection for fluid inlets and outlets.
- Modular designs for quick replacement and scaling.
Professional installation ensures proper alignment, optimal flow, and leak-free operation—maximizing performance from day one.
Why Brass Tube Bundle Heat Exchangers Are a Smart Investment
Choosing the right heat exchanger isn’t just about cost—it’s about reliability, efficiency, and long-term value.
Here’s why brass tube bundle heat exchangers stand out:
- High thermal performance with minimal energy waste.
- Proven durability in harsh conditions.
- Low maintenance and long operational life.
- Affordable compared to high-end alloys.
- Eco-friendly and recyclable.
- Versatile for multiple industries.
Whether you run a small HVAC system or a large-scale industrial plant, this investment pays off over time through lower operational costs and consistent performance.
Conclusion: Power Your System with Precision
A brass tube bundle heat exchanger is more than just a piece of equipment—it’s a performance enhancer, a cost saver, and a sustainability booster. Whether your goal is precise temperature control, extended operational life, or reducing energy consumption, brass tube bundles deliver exceptional value.Choosing the right heat exchanger means choosing efficiency, longevity, and peace of mind. And when it comes to that, brass stands out as a brilliant choice.
Frequently Asked Questions (FAQs)
How long does a brass tube bundle heat exchanger last?
Answer: With proper maintenance, these exchangers can last 15–20 years, depending on operating conditions.Can I use it for seawater applications?
Answer: Absolutely. Brass is highly corrosion resistant, making it ideal for marine and desalination applications.Is brass better than stainless steel?
Answer: Brass offers excellent heat transfer at a lower cost, especially in applications where corrosion resistance is key.Are replacement tubes easy to install?
Answer: Yes, most designs allow for quick tube removal and replacement, minimizing downtime.Can I customize the design for my plant?
Answer: Yes, you can tailor dimensions, pressure ratings, flow type, and materials to match your specific system needs.
